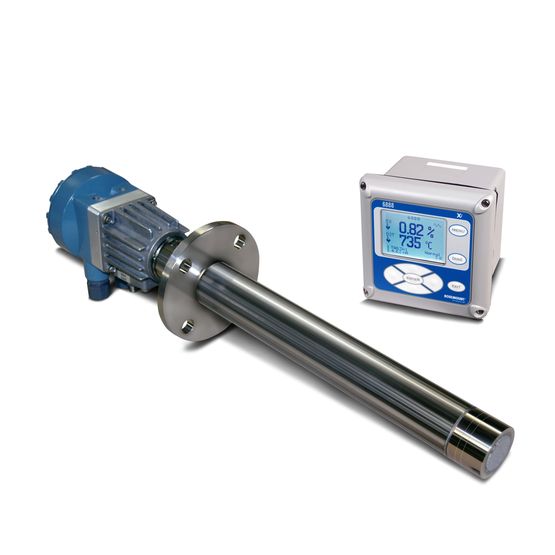

The Rosemount 6888C In Situ Oxygen Analyzer provides a continuous, accurate measurement of oxygen in flue gases in areas with hazardous requirements. Accurate measurement of excess oxygen is critical to optimize the combustion reaction, resulting in reduced energy costs, increased safety, and lower emissions. Achieve a reduction in overall downtime and maintenance with the robust oxygen sensor and autocalibration capabilities of this transmitter.
Specifications
- Response Time
- Up to 8 sec T90
- Process Temperature Range
- Up to 1300 °F (705 °C) or 1922 °F (1050 °C) with optional bypass and jacket
- Ambient Temperature
- -40 to 158 °F (-40 to 70 °C)
- Dimensions
- Probe Length Options from 18 in (0.46 m) to 12 ft (3.66 m)
- Communication Protocol
- 4-20 mA HART, FOUNDATION Fieldbus
- Certifications/Approvals
- Hazardous location, see full specs for complete list of certifications
- Measurement Type
- Oxygen, Zirconia – Brazed Disk
- Accuracy
- ±0.75% of reading or ±0.05% O2, whichever is greater
- Measurement Range
- 0 to 10% or 0 to 50%
Features
- Features industry-leading accuracy of ±0.75% of reading or ±0.05% O2, whichever is greater
- Digital communication HART® 5 and FOUNDATION™ Fieldbus protocols available to suit a wide range of applications
- Optional Xi Electronics include a local operator interface (LOI), a large, backlit LCD display and advanced software features
- Probe mounting adaptors allow for easy connection to existing Westinghouse World Class, Rosemount Oxymitter and most competitive O2 probe installations
- Advanced sensor diagnostics indicate when calibration is recommended and when there is a plugged diffuser or filter
- The Rosemount 6888 is fully field-repairable and includes a variable probe insertion option
- HART™ wireless communication from probe or Xi
- Rugged explosion-proof design satisfies ATEX/ IECEx Ex d and CSA Class 1, Division/Zone 1 approval requirements.
- Maintenance costs are reduced with the redesigned modular diffuser and process flame arrestor assembly
